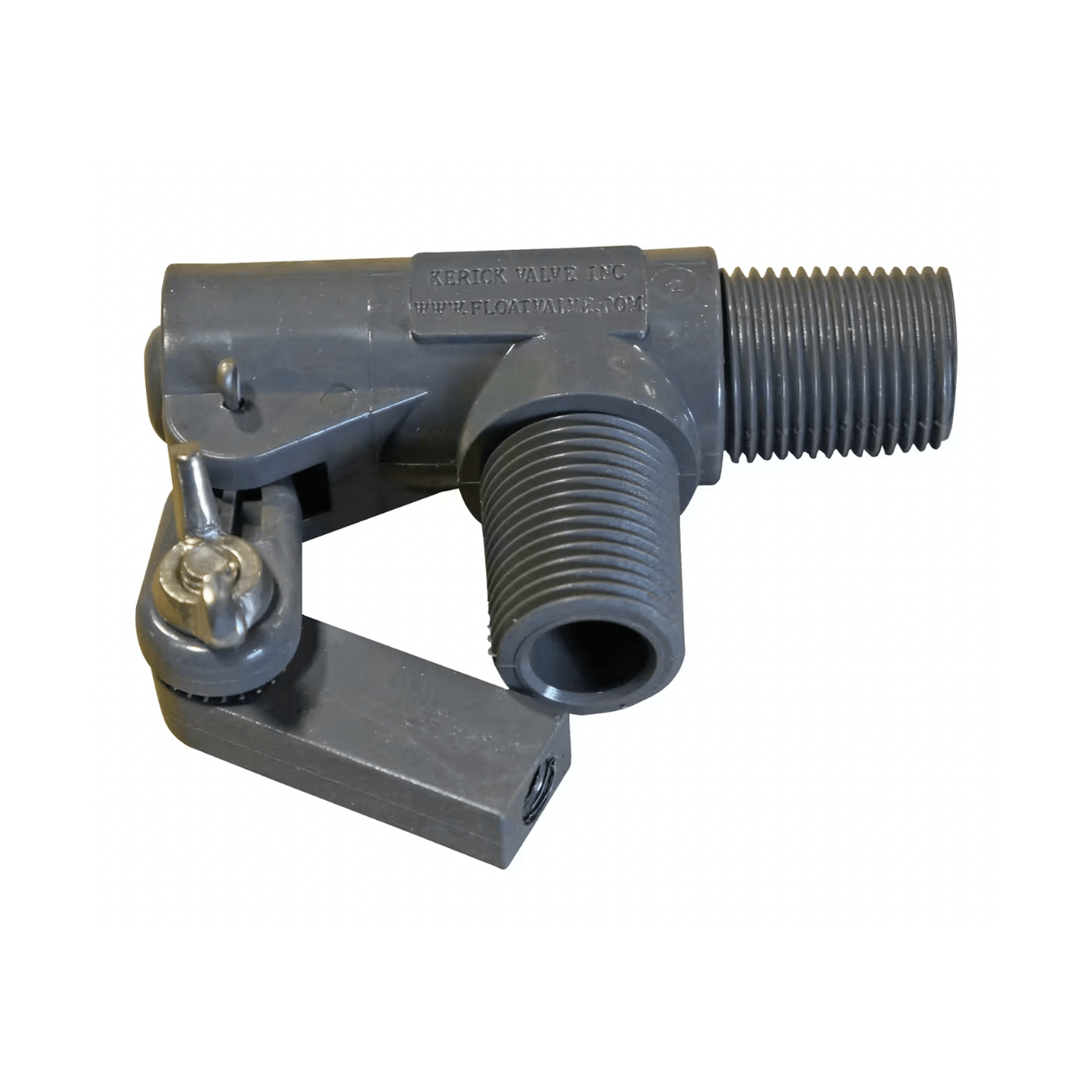

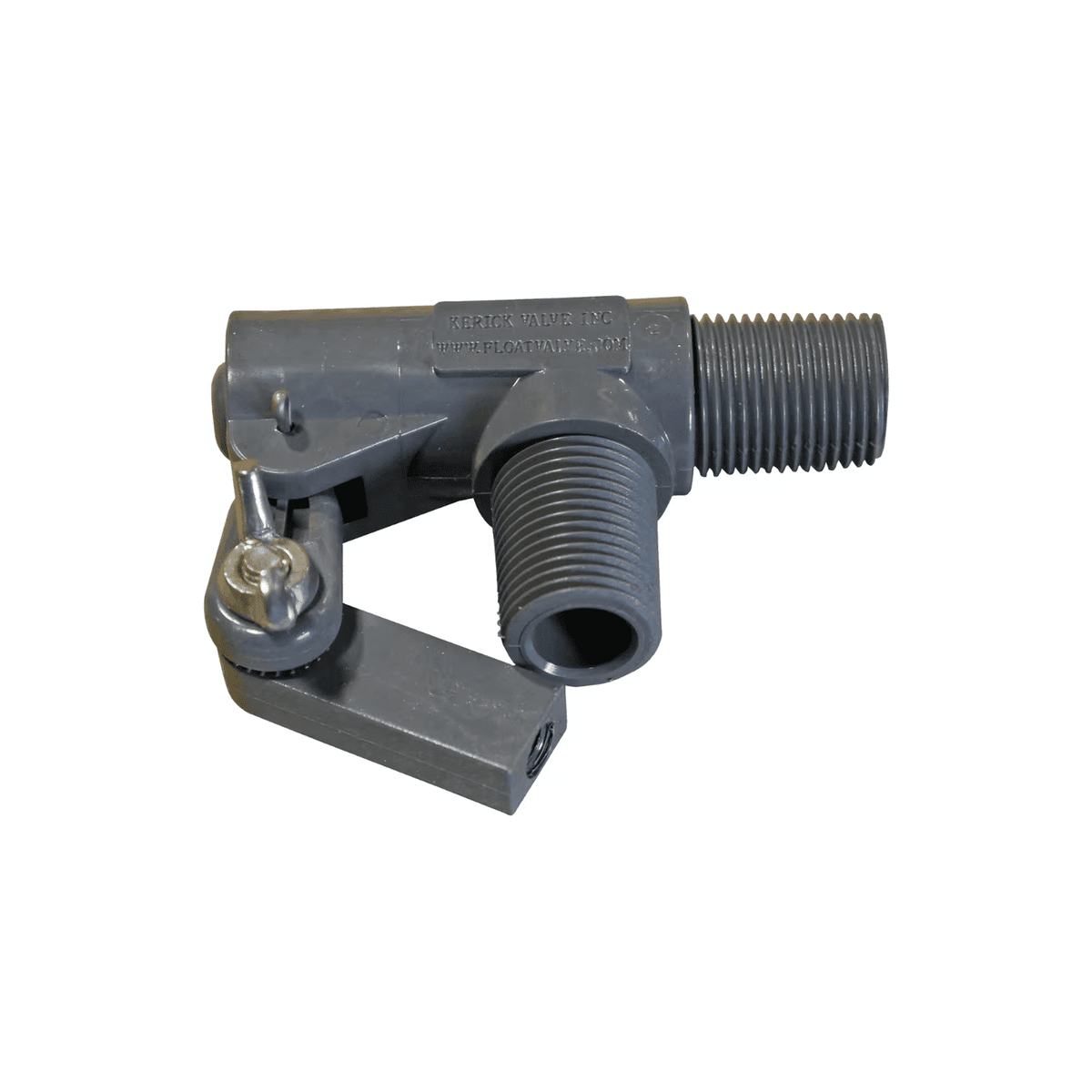

Canarm - Replacement Valve assembly for Heated Waterer (H0-P4300)

The fill valve (H0-P4300) controls the flow of water into the bowl and works in conjunction with the float (H0-P4836). Replacement is needed when:

• Constant dripping or running water: The valve seat is worn or debris is preventing the valve from sealing completely. Even a slow drip wastes significant water over time and can cause ice buildup around the waterer in winter.
• No water flow despite open float: Internal debris, mineral scale buildup, or a failed valve seal can block flow even when the float drops and the valve should open.
• Anti-siphon failure: The H0-P4300 includes an anti-siphon feature that prevents backflow contamination of your water supply. If you notice a musty taste in water throughout the barn after servicing the waterer, the anti-siphon may have failed.
• Cracked valve body: Physical impact or freeze damage can crack the valve housing.

The H0-P4300 is compatible with all Canarm waterers manufactured since 1993 and includes improved flow rate over earlier valve designs.

Before ordering a replacement valve, it is worth attempting a cleaning — mineral scale is a common cause of valve malfunction and is often correctable without replacement:

1. Shut off the water supply to the waterer and disconnect power.
2. Remove the valve from the waterer (it typically unscrews or unclips from the bowl inlet).
3. Soak in white vinegar for 2–4 hours. Vinegar dissolves calcium and lime scale effectively without damaging plastic or rubber components.
4. Use a small brush (an old toothbrush works well) to scrub the valve seat, inlet screen, and anti-siphon port.
5. Flush with clean water and reinstall. Test operation before reassembling the waterer fully.

If the valve still drips or fails to open after cleaning, replacement with the H0-P4300 is the correct next step. Hard water areas (common in Quebec) may require annual valve cleaning as preventive maintenance.
